Forward Floor Insulating Foam

Posted On September 10, 2019

There’s an interior skin that goes over the forward floor bottom skin, so I needed to install the insulating foam first.

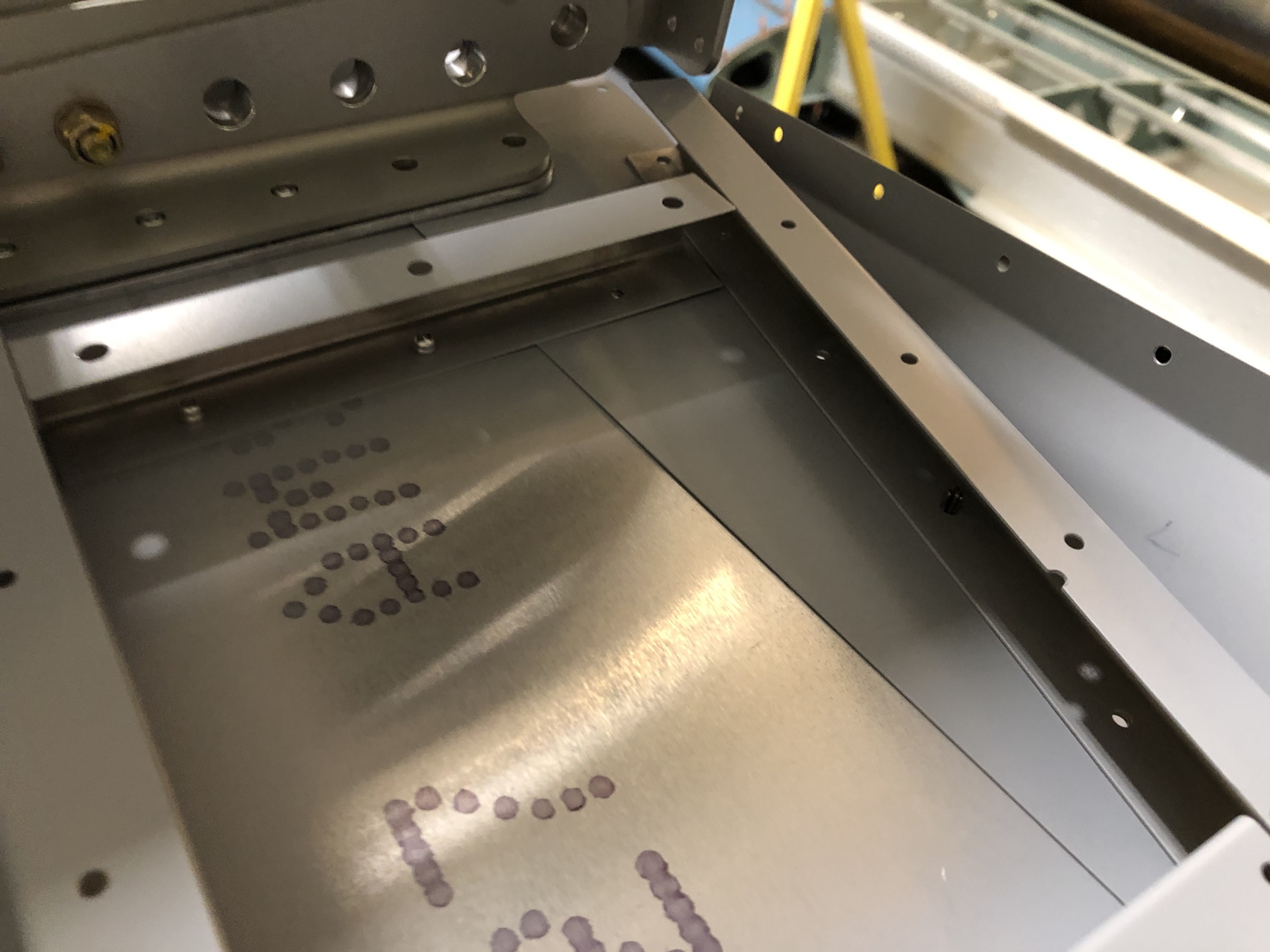

A reinforcement skin CF-SKN-007-L/R fits between the bottom skin and the stringers/main spar; I just wanted to make sure I have a pic capturing that I installed it correctly

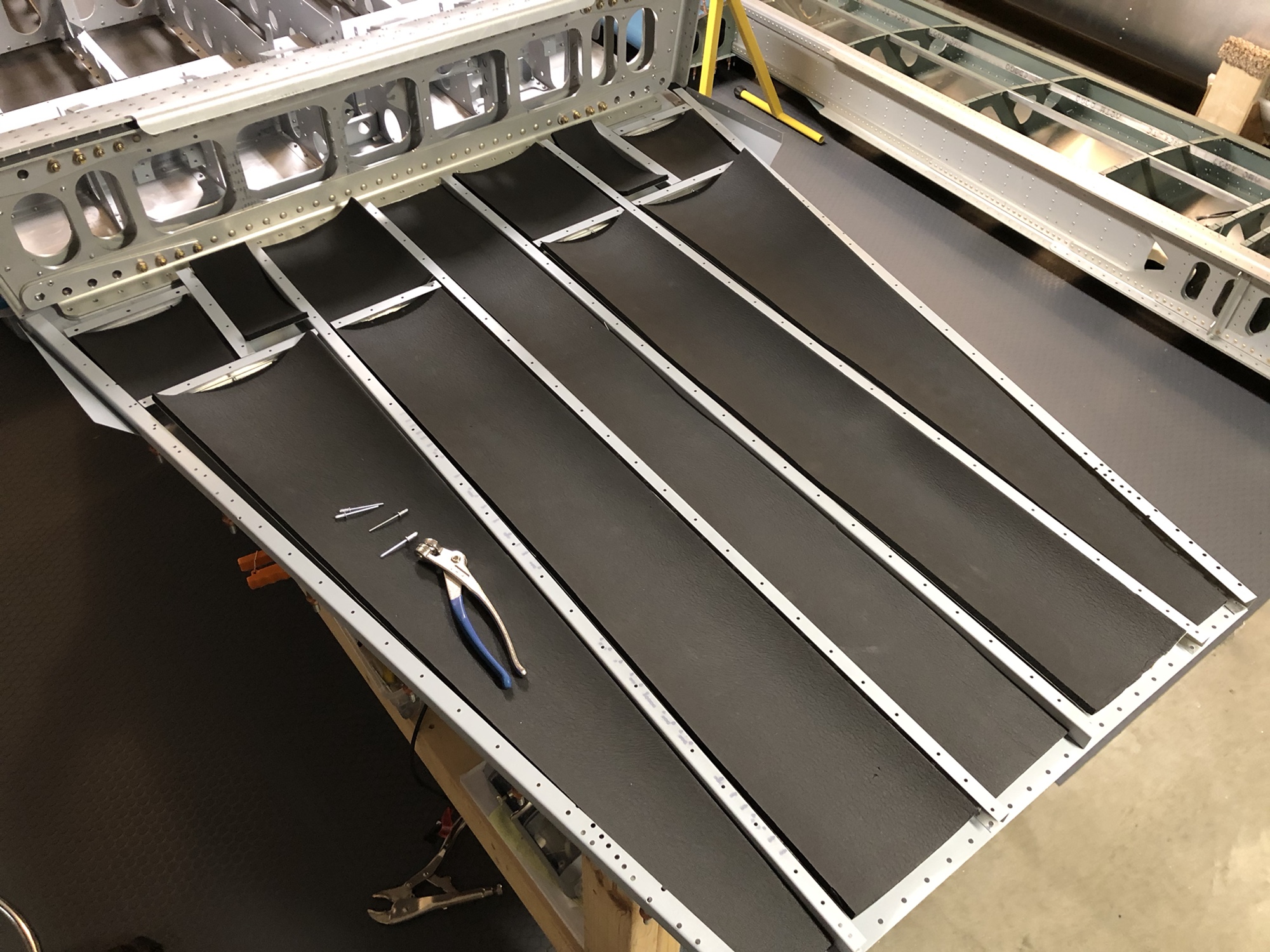

Checking fit of all the foam pieces before I remove the adhesive backing

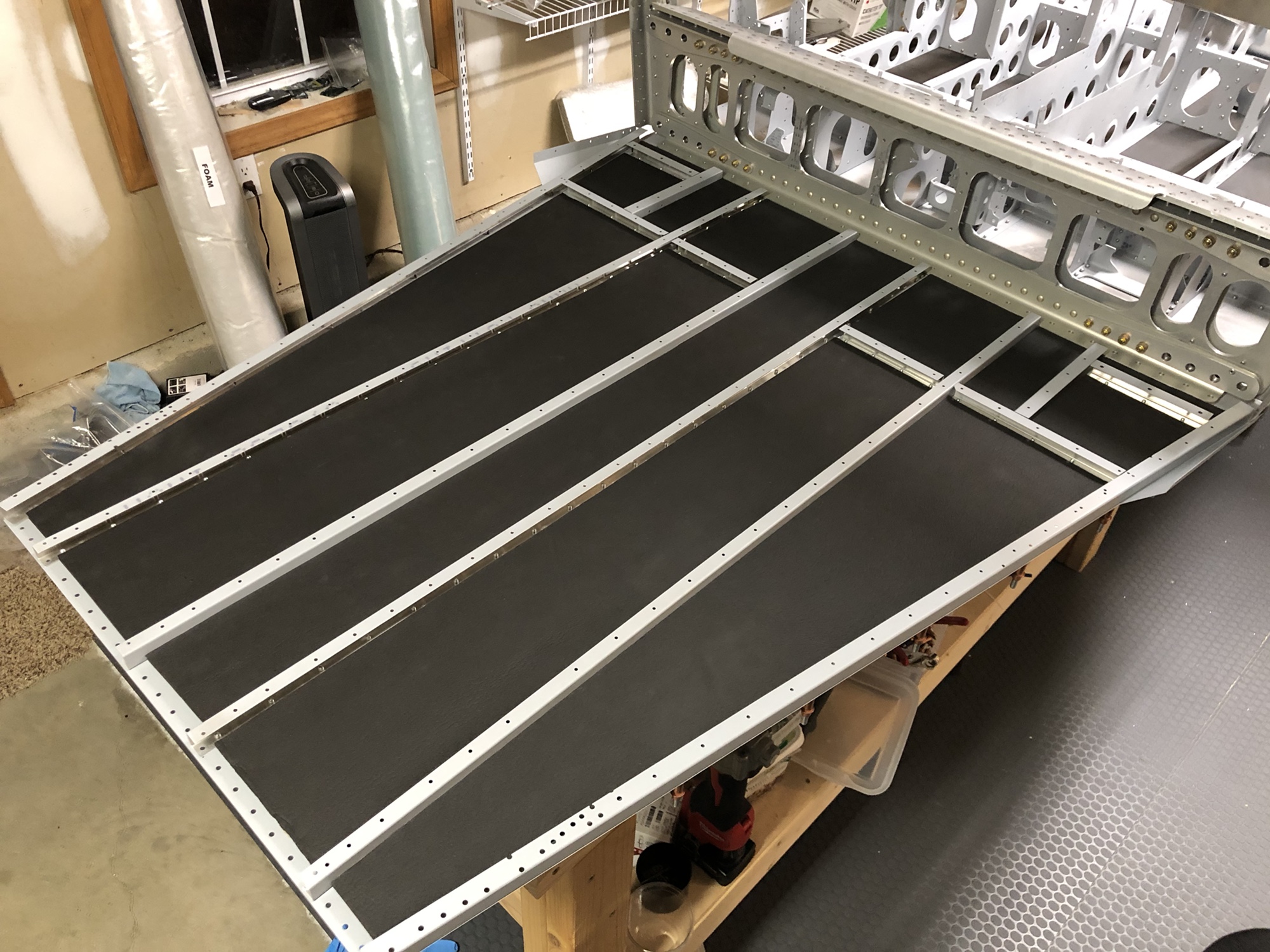

All of the foam pieces now taped to the skin

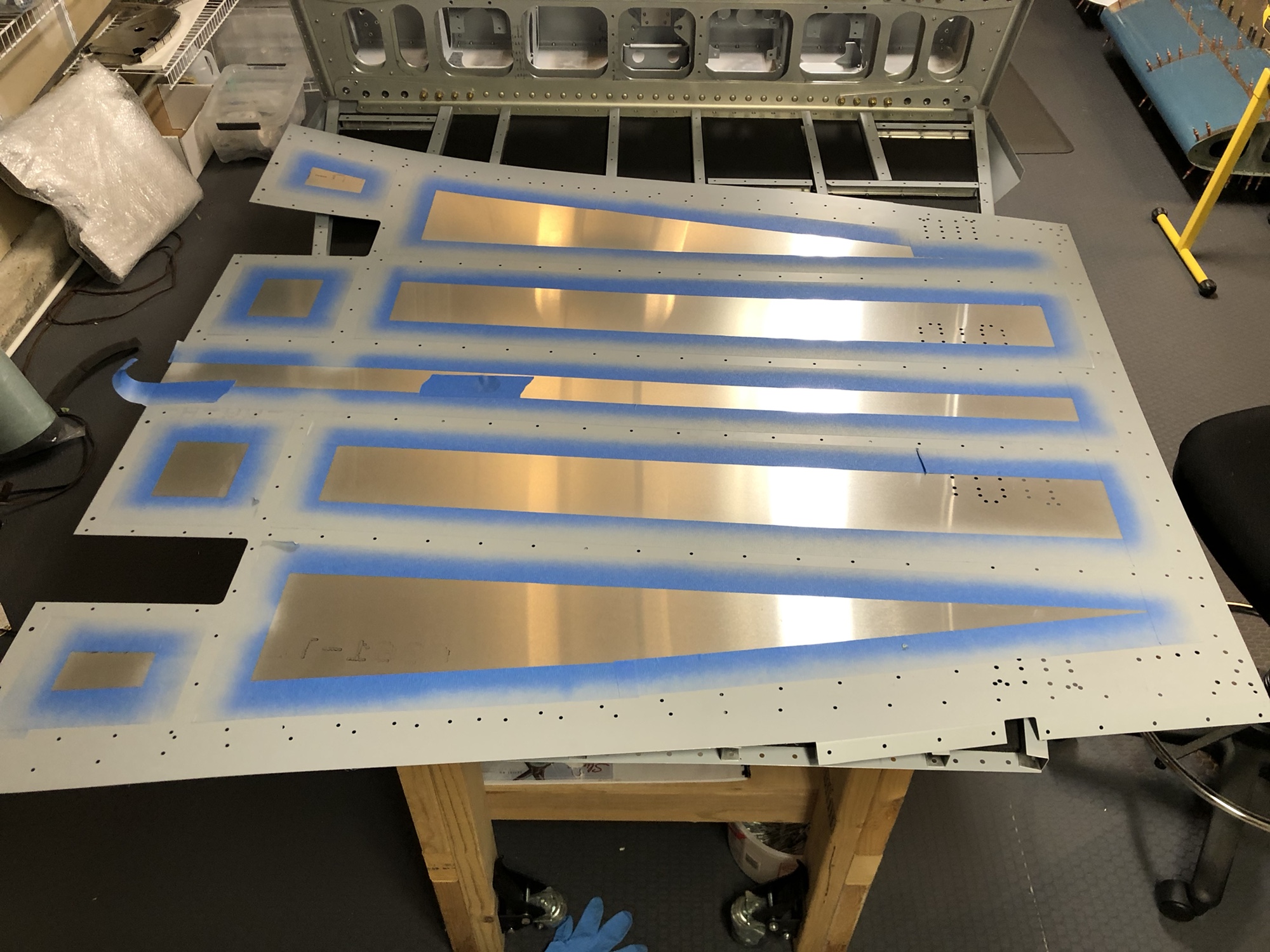

CF-SKN-011-C-C- sits above the foam. For some reason I thought I would be attaching the foam to this skin, so I had masked off the areas with painters tape

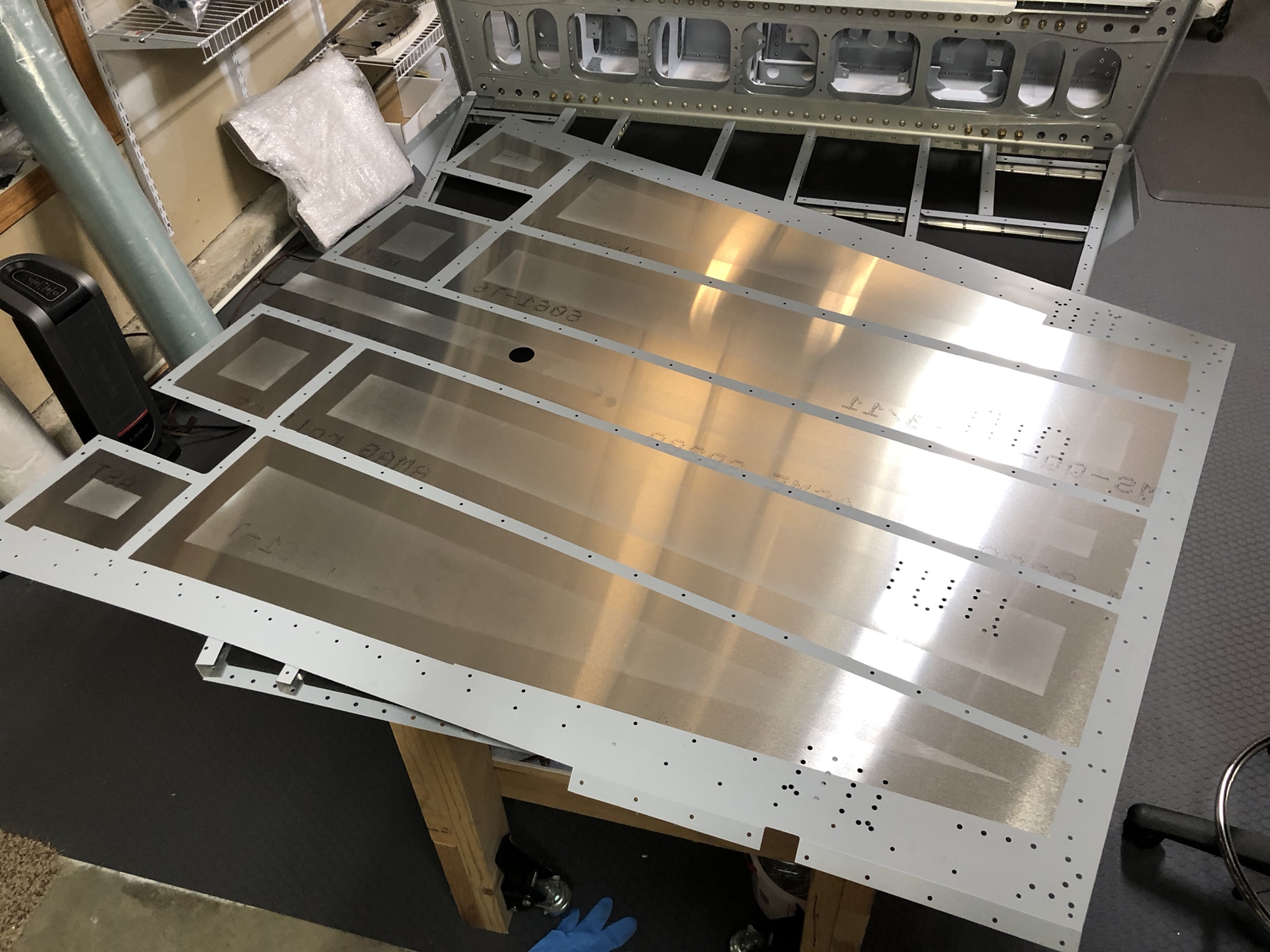

Oh well, I guess it still looks neat!

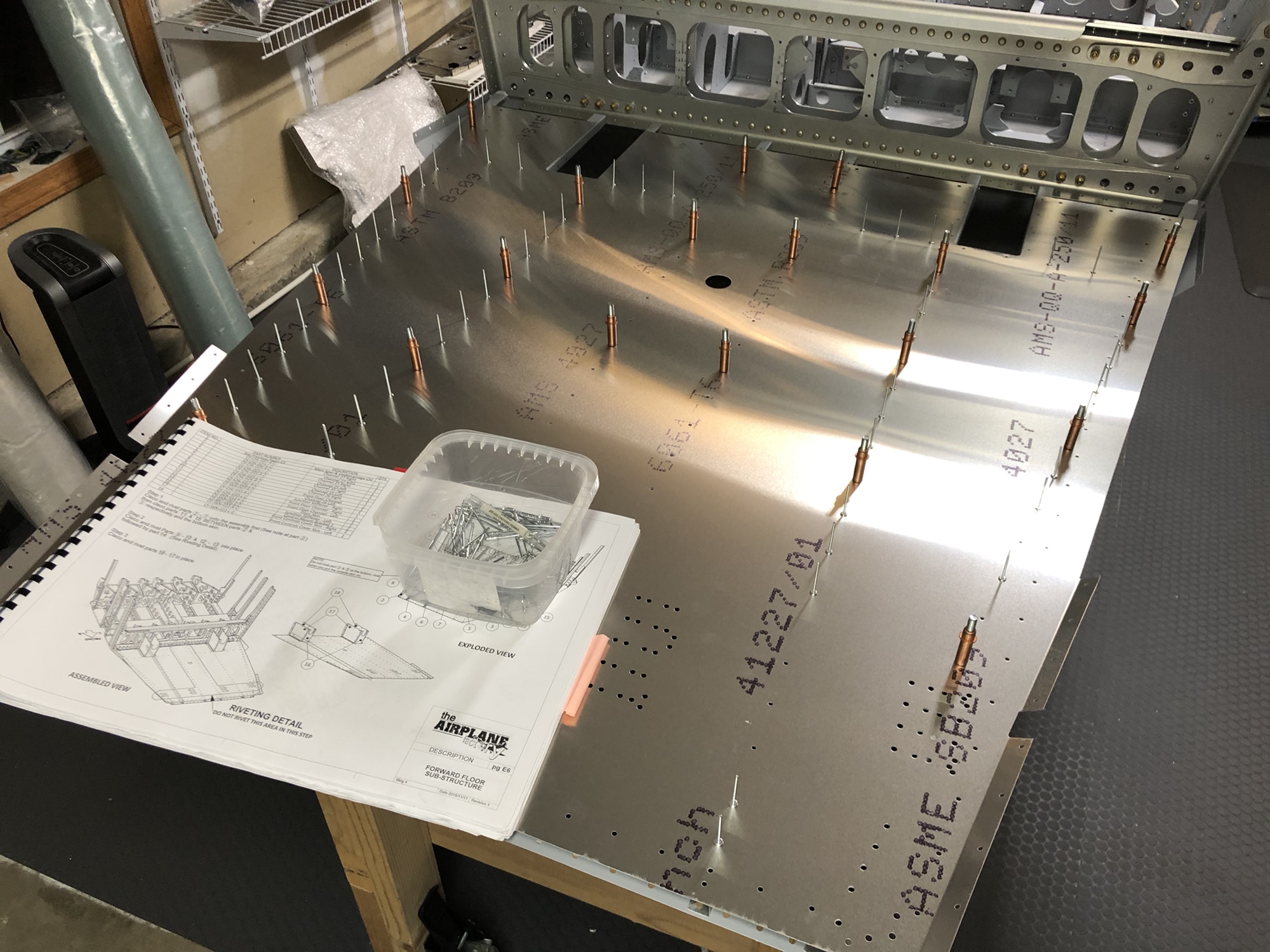

Starting to place rivets, using the manual to help identify which holes do NOT get riveted at this step
